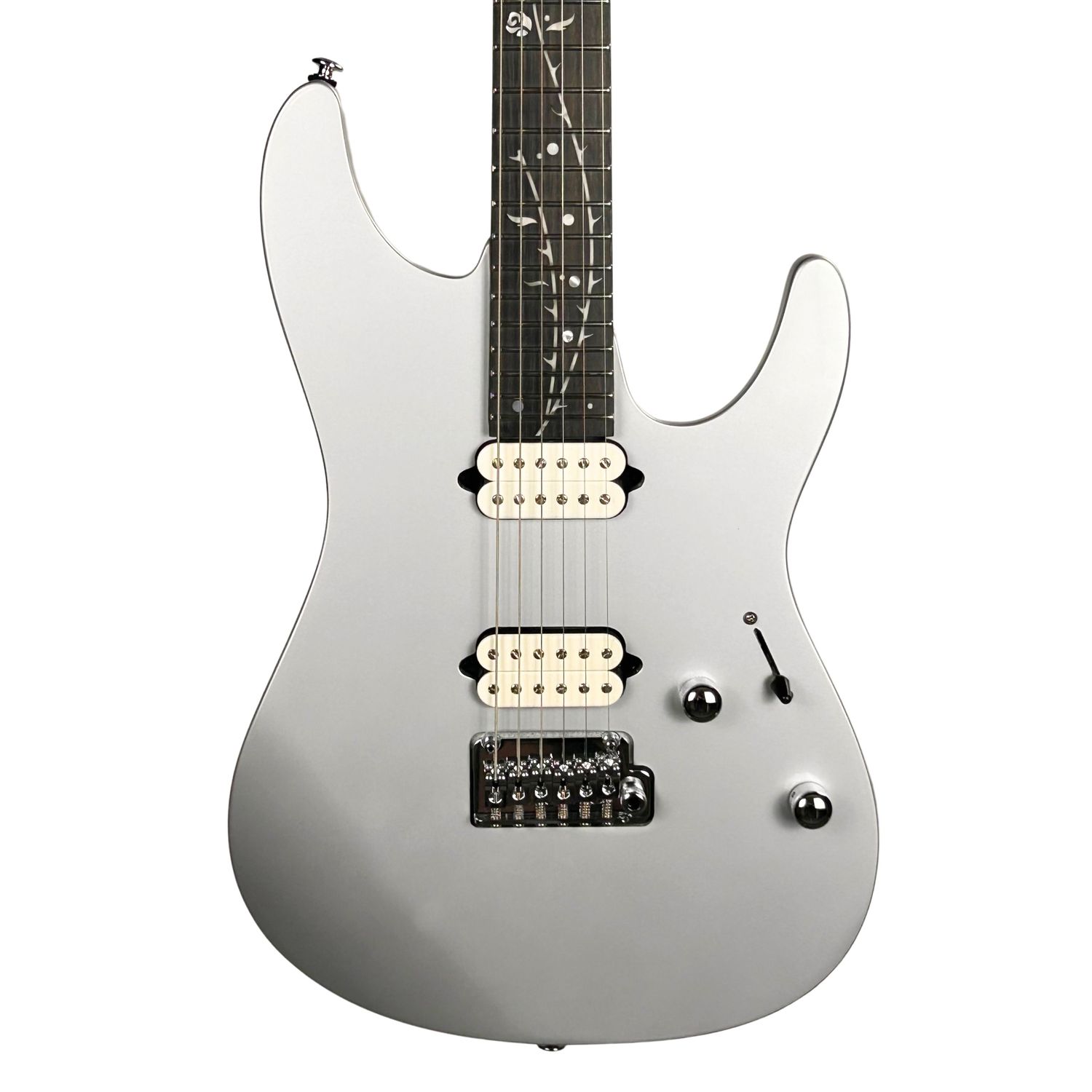

Ibanez TOD10 Tim Henson Signature Electric Guitar Classic Silver

SPECS
neck type    AZ Oval C Roasted Maple neck
top/back/body    American Basswood body
fretboard    Ebony fretboardTree of Death inlay
fret    Jumbo Stainless Steel frets
number of frets    24
bridge    Gotoh® T1502 tremolo bridge
string space    10.5mm
neck pickup    Fishman® Fluence™ Tim Henson Signature Series (H) neck pickupActive/Alnico
bridge pickup    Fishman® Fluence™ Tim Henson Signature Series (H) bridge pickupActive/Alnico
factory tuning    1E,2B,3G,4D,5A,6E
strings    D'Addario® EXL110
string gauge    .010/.013/.017/.026/.036/.046
nut    Graph Tech®
hardware color    Chrome

NECK DIMENSIONS

Scale :    648mm/25.5"

Width    42mm at NUT

Width    57mm at 24F

Thickness    20.5mm at 1F

Thickness    22.5mm at 12F
Radius :    305mmR

Features

Oval C Roasted Maple neck

The Roasted Maple neck is heat-treated to increase stability, durability, moisture resistance and tolerance of temperature changes.The Graphite reinforcement rods provides massive sustain and excellent stability.

Ebony fretboard

Ebony produces tight lows and mid range with a strong attack in the high end and features a quick response and rich sustain.

American Basswood body

The American Basswood body delivers a natural and flat tone.

Fishman® Fluence™ Tim Henson Signature Series pickups

Tim's signature Fishman® Fluence™ pickups span the entire range of aggressive lead and rhythm tones to the cleanest of clean single coil combinations, even touching on sounds Tim was previously only able to produce with his acoustic guitars.
Neck Pickup Voice 1: Thick and smooth neck humbucker / Voice 2: Hyper-clean, nylon string surrogate/ Voice 3: Tim's fluid neck single coil
Bridge Pickup Voice 1: Based on Fishman®'s hot-rodded Classic voice, the quintessential lead tone of generation / Voice 2: Combination of Tim's favorite bridge humbuckers / Voice 3: Tim's ideal single coil combination tone when used in conjunction with neck coil

Gotoh® T1502 tremolo

The T1502 tremolo bridge features steel saddles and a die-cast zinc tremolo block for a quick response and improved articulation. The 10.5mm string spacing allows for easy picking across strings and its snap-in construction makes it easy to load a tremolo arm.

Fishman® Fluence™ Voicing switch on tone control (push/pull) for Tim Henson Signature Series pickups

The Voicing switch allows the pickups to switch between three musically complementary voices.
