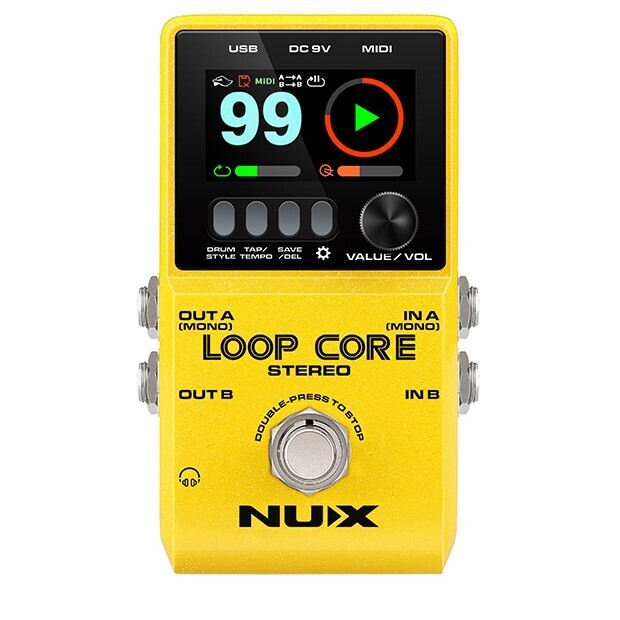

Nu X Loop Core Stereo Looper

The NUX Loop Core Stereo is our next generation Looper pedal. Featuring a high-definition color LCD display, stereo inputs/outputs, and a MIDI control input; the Loop Core Stereo allows you to create up to 6 hours of music phrases, save them in one of 99 provided memory slots, and play back as stereo loops! Also included are 50 different drum patterns to complete the looping experience. Whether you practice, compose, or play live gigs, you’ll be inspired from the very first loop!

Create and save your loops

It’s easy to create loops and practice with the NUX Loop Core Stereo.

Power on the Loop Core Stereo pedal, rotate the VALUE knob to select an empty memory from 01 ~ 99, then you can press the foot switch to record/play/dub your loops. You can also hold the foot switch to UNDO/REDO/CLEAR.

Turn the VALUE knob to select a memory slot between 01~99 or adjust parameters.

When you are working on loops or practicing, press the VALUE knob once/twice to adjust the volume of Loop/Drum.

MIDI Control

Nearly every parameter of the Loop Core Stereo can be controlled by an external MIDI controller, such as tap tempo, stop/start/record, and so much more. The MIDI to 1/8” cable is included to get you started quickly.

*Please download the user’s manual and check the MIDI commands.

Customize your own Boot-up picture

The Loop Core Stereo allows users to customize their own boot-up picture with a GIF.

- Connect the Loop Core Stereo to your computer and download a GIF picture to the folder: NUX LOOPER > NUX_LOOP > GIF.

- Disconnect and reboot the Loop Core Stereo, and then enter the DISPLAY setting and set the BOOT-UP PICTURE option to USER.

- Reboot the Loop Core Stereo again. Enjoy your own customized GIF interface!

Features

• All new design with a high-definition color LCD display.
  Up to 6 hours recording time(Stereo).
  99 User memories.
  Built-in rhythm tracks with 50 patterns.
  Split out for two amplifiers.
  Cab simulation for output to mixer.
  Built-in MIDI control.
  Sampling Rate: 44.1kHz.
  A/D Converter: 24bit.
  Signal Processing: 32bit floating.
  Input: Mono/L/R.
  Outputs: Mono/L/R/Phones
  Specifications
  Sampling Frequency: 44.1KHz
  AD converter: 24bit
  Signal Processing: 32bit
  Frequency response: 20Hz-20KHz
  Noise Level: -100dBu
  Dynamic Range: 108dB
  Power Consumption: 110mA-120mA
  Input: Mono, Stereo
  Output: Mono, Stereo, Phones
  Display: TFT color LCD display
  Power: 9V negative tip power adapter
  Dimensions: 122mm(L)*72mm(W)*48mm(H)
  Weight：264g
