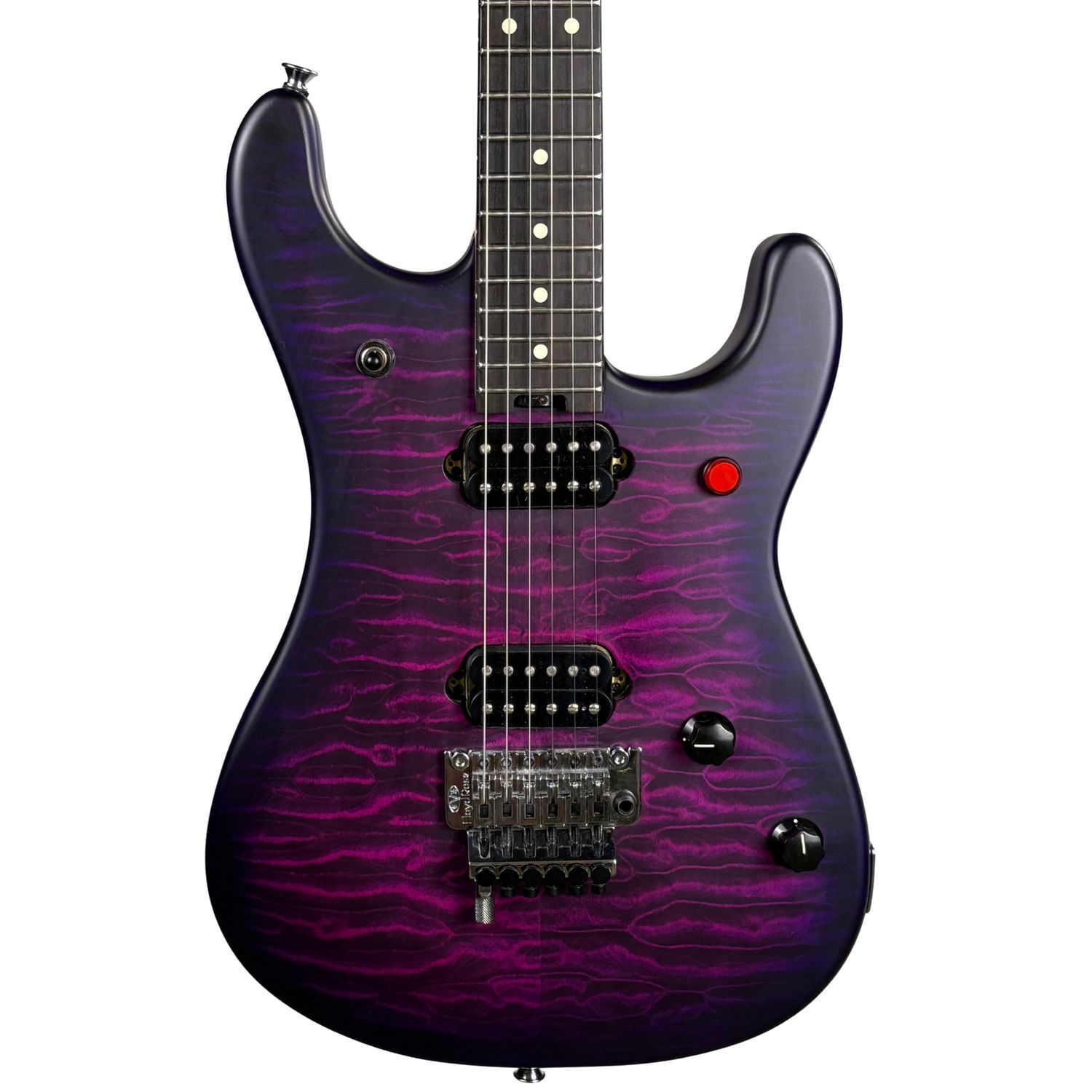

EVH 5150 Deluxe Quilted Maple Purple Daze 2021 (Used)

EVH 5150 Deluxe Quilted Maple Purple Daze 2021 (Used)

Condition and Information

• Has minimal light wear or scratches from being played. Overall in great condition.
• Comes with brand new Henry Heller "Backwoods" Gig Bag
• Comes with original paperwork and tremolo bar
• Has small ding on the top of headstock.
• Has two small dings on the back of lower body.
• Made in Mexico in 2021
• Serial Number: EVH2110573
• Weighs 7lb 14oz
• Has been setup, restrung, and tested. Everything functions as it should.
• More information and pictures available upon request.
• Sold As-Is. Ask questions before purchase.

Manufacturer's Description

Engineered for speed, comfort and full-throttle attitude, the reimagined 5150® Series Deluxe is an iconic blast from the past that blends both throwback and modernized features.

Like its predecessor, the 5150 Deluxe QM features a modified Strat®-style basswood body with a quilt maple top and deeper upper body curve. The graphite-reinforced bolt-on quartersawn maple neck features a comfortable modified "C" profile, hand-rubbed satin urethane back finish, heel-mount truss rod adjustment wheel and color matched "hockey stick" headstock with EVH® logo decal. Built for smooth and speedy playability, the 12"-16" compound radius ebony fingerboard has 22 jumbo frets and cream dot inlays.

While the famed striped original had a single humbucking bridge pickup only, the all-new 5150 Deluxe is outfitted with an HH pickup configuration controlled by a three-way toggle on the upper bout. The custom designed EVH® Wolfgang® Alnico 2 humbucking bridge pickup delivers the perfect amount of punch and articulation with sweet sustain and thick chunky rhythms in a perfectly balanced EQ curve. The EVH Wolfgang Alnico 2 humbucking neck pickup serves up no-nonsense, balls to the wall overdrive and endless sustain without skimping on articulate cleans when the volume is rolled down. A custom designed low friction volume knob creates even-volume tapering for the smoothest volume swells, while the high friction tone knob will stay in place even if accidentally bumped. An added new feature comes in the way of a lower bout kill switch, allowing you to mute your guitar for those stutter, rhythmic effects - think "You Really Got Me."

Decked out with a "dive-bomb" certified EVH-branded top-mount Floyd Rose® bridge, the locking tailpiece features fine tuners for each string and a patented EVH D-Tuna® for switching back and forth from drop-D to standard tuning in an instant.

A stylized modern spin on a fan favorite, the 5150 Deluxe is sure to stun with its rippling quilt maple top dressed in a vivid Purple Daze finish with all-chrome hardware, including the EVH-branded Gotoh® tuning machines.

Features

• 25.5" scale length
• Modified Strat®-style basswood body with quilt maple top and deeper upper body curve
• Graphite-reinforced bolt-on quartersawn maple neck
• Neck is carved and rolled to Eddie Van Halen's specifications with hand-rubbed satin urethane back finish
• 12"-16" compound radius ebony fingerboard with 22 jumbo frets and cream dot inlays
• Convenient heel-mount truss rod adjustment spoke wheel
• Direct mount EVH® Wolfgang® bridge and neck humbucking pickups
• Top-mount EVH-branded Floyd Rose® bridge and R3 locking nut
• EVH D-Tuna®
• Three-way toggle switch, kill switch, volume control (500K EVH Bourns® Low Friction Pot) with treble bleed circuit and tone control (250K EVH Bourns® High Friction)
• Available in Purple Daze with all-chrome hardware, including the EVH-branded Gotoh® tuning machines
• Color matched EVH hockey stick headstock with EVH logo decal

General

Series 5150® Series Guitars

Orientation Right-Hand

Color Purple Daze

Country Of Origin MX

Headstock EVH® Hockey Stick

Neck Material Qartersawn Maple

Neck Finish Hand-Rubbed Satin Urethane

Neck Shape EVH® Modified "C" Backshape

Neck Construction Bolt-On with Graphite Reinforcement

Neck Thickness .790" at 3rd Fret & .810" at 12th Fret

Fingerboard Radius 12"-16" Compound Radius (304.8 mm to 406.4 mm)

Fingerboard Material Ebony

Position Inlays Cream Dot

Side Dots Cream

Number of Frets 22

Truss Rod Nut Heel-Mount Truss Rod Adjustment Wheel

String Nut Floyd Rose® R3 Locking

Nut Width 1.685" (42.8 mm)

Nut Material Floyd Rose® R3 Locking

Body Basswood

Body Finish Satin Urethane

Body Shape 5150™

Body Top Quilt Maple

Body Material Basswood

Bridge Top-Mount EVH®-Branded Floyd Rose® Locking Tremolo with EVH® D-Tuna®

Tremolo Block Brass

Pickup Covers Black

Control Knobs Black Knurled with White Indicator

Switch Tip Black

Hardware Finish Chrome

Tuning Machines EVH®-Branded Gotoh®

String Trees Floyd Rose® Retainer Bar

Strings EVH® Nickel Plated Steel (.009-.042 Gauges)

Tremolo Arm Floyd Rose® 1000 Series Locking

Neck Plate 4-Bolt Standard

Strap Buttons Oversized

Bridge Pickup Direct Mount EVH® Wolfgang® Humbucking

Neck Pickup Direct Mount EVH® Wolfgang® Humbucking

Pickup Configuration HH

Controls Volume (500K EVH® Bourns® Low Friction Pot) with Treble Bleed Circuit, Tone (250K EVH® Bourns® High Friction Pot)

Switching 3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup

Auxiliary Switching Kill Switch
